Features:
- 5G Connectivity: Supports both 5G and LTE networks via SIM or eSIM.
- WAN Flexibility: Embedded 5G modem and optional Ethernet WAN port for enhanced reliability.
- Rugged Design: Fanless, ventless metal enclosure, shock and vibration resistant.
- Remote Management: Compatible with Peplink's InControl 2 cloud-based system.
- No Wifi/GPS included
Technical Specifications:
- Router Throughput: Up to 300 Mbps.
- Cellular Data Rates: 5G downlink up to 3.4 Gbps, uplink up to 900 Mbps; LTE (Cat-20) downlink up to 1.6 Gbps, uplink up to 200 Mbps.
- Ethernet Ports: One 10/100/1000M LAN port with PoE input and one 10/100/1000M WAN/LAN port.
- Antenna Connectors: Four SMA connectors for cellular antennas.
- Power Input: Supports 10V – 30V DC, AC adapter (100V–240V), and Power over Ethernet (802.3at).
- Operating Temperature: -40°F to 149°F (-40°C to 65°C).
Supported Frequency Bands:
- 5G Bands: (Sub-6 GHz, NSA & SA): n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79.
- LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71.
Included in Package:

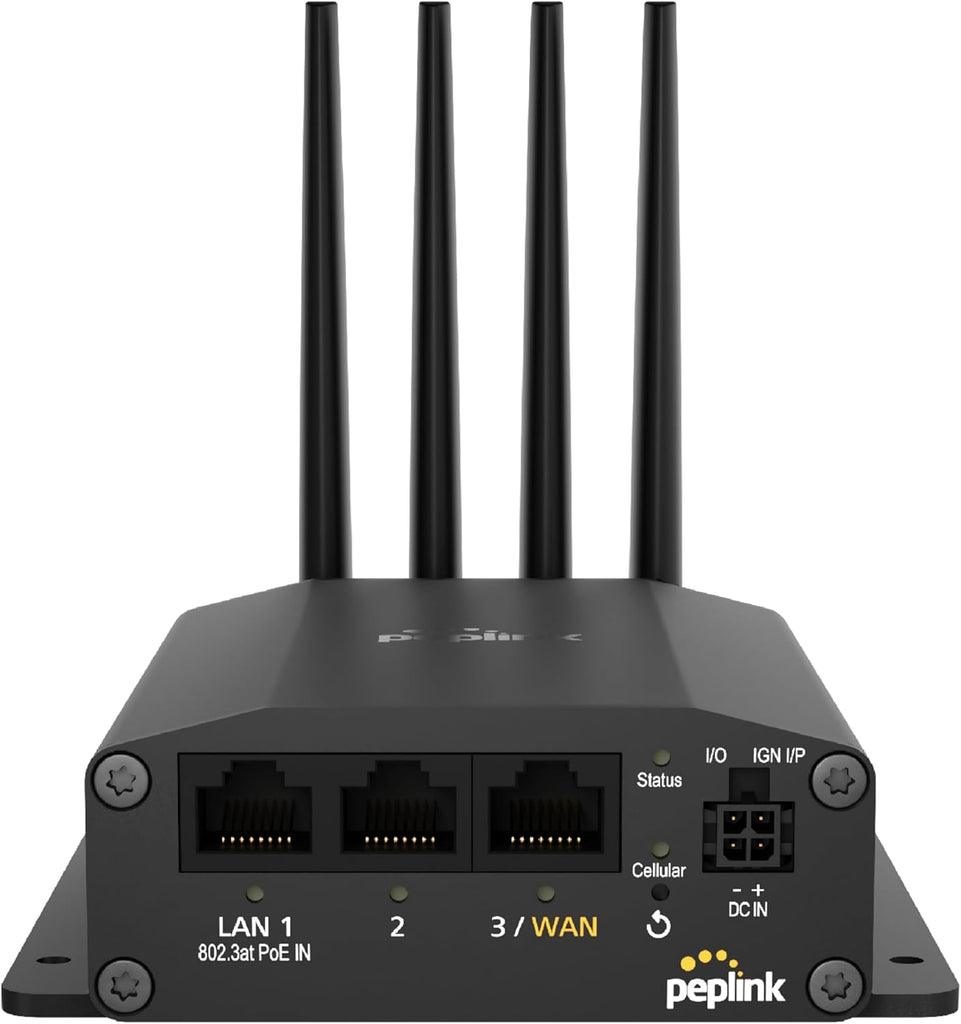

- 1x MAX BR1 Mini 5G Router
- 4x LTE/5G Antennas
- 1x 12V 2A 4-pin Power Supply
